Products > Metal Fasteners > Screw > Stainless Steel Flat Head Machine Screw
Product name : Stainless Steel Flat Head Machine Screw
Item : MTSCRFLTST
material : Stainless Steel
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:
Standard: ISO7046 , DIN965, GB/T819.1-2000, GB/T819.2-1997(Philips Driver), DIN963 , ISO2009, GB/T68-2000 (Slotted Driver)
Material: SUS301,304,18/8,0Cr18Ni9,X5CrNi1810,X10Cr13,410S21,if you need to use other stainless steel, please let us know.
Heat Treatment: None for normal, If you have special hardness requirement, please let us know.
Surface Hardness:220HV is Normal, 750HV max after Quench with SUS410
Finish:None.
Head:Flat Head
Tensile strength:700N/mm2
Thread Direction:Normal is right hand/dextrorotation, if you want left hand, please let us know.
Refer to document as below:

Stainless Steel Flat Head Machine Screw.pdf


Stainless Steel Flat Head Machine Screw is a machine screw, also sometimes referred to as a machine bolt, is a screw that is typically designed to be fastened to an existing, tapped hole on a metal surface, usually in conjunction with a corresponding nut. These types of screws are not as large as the average screw, usually ranging in sizes up to three quarters of an inch (19.05 mm) but they can still be larger. Variations between machine screws mainly exist in overall size, shape of the head, slot type, length, material, and characteristics of the thread.

"Stainless Steel" - With the addition of 12% chromium to iron, stainless steel is formed. The chromium protects the iron against most corrosion or red colored rust; thus the term "stainless steel". The ability of stainless to form a thin layer of protection on its outside surface, called a "passive film", is its most important characteristic in preventing corrosion.

"18-8" - 300 series stainless steel having approximately (not exactly) 18% chromium and 8% nickel. The term "18-8" is used interchangeably to characterize fasteners made of 302,302HQ,303,304,384, XM7, and other variables of these grades with close chemical compositions. There is little overall difference in corrosion resistance among the 18-8 types, but slight differences in chemical composition do make certain grades more resistant than others against particular chemicals or atmospheres.

Austentic - Refers to 300 series stainless, the most popular of the stainless alloys accounting for 85%-90% of stainless fasteners sold Named for sir Robert Williams Austen, an English metallurgist, austentic stainless is a crystal structure formed by heating steel, chromium, and nickel to a high temperature where it forms the characteristics of 300 series stainless steel.
  Flat head fasteners are designed to fit flush to the surface when used with countersunk holes. Length is measured from the top of the head. The Phillips drive style was originally designed so that the driver would slip out under extreme torque, preventing over-tightening and damage to the fastener or the material. Self-Drilling Points are excellent for use with sheet metal.

 You can refer to below chart/list of Screw head/Thread ending

Thread ending:

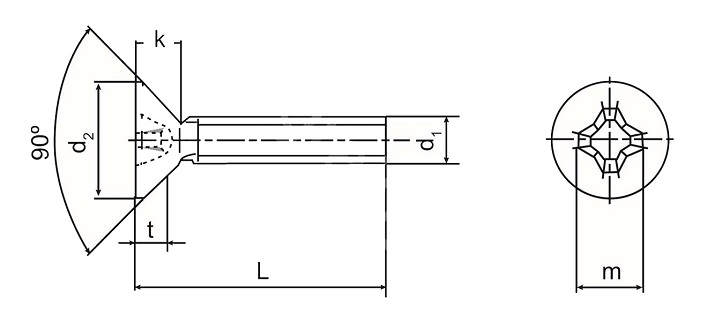

And below is the common drawing for this kind:

Below chart show some typical dimensions of them, you can refer it, or can you change it for your own design, if you want know more standard dimensions of screw , you can contact us.

Item d1(mm) L(mm) d2 max.(mm) k max.(mm) n (mm) t min(mm)
 M3X5 M3 5 5.6 1.65 1.5 1.8
 M3X6 M3 6 5.6 1.65 1.5 1.8
 M3X8 M3 8 5.6 1.65 1.5 1.8
 M3X10 M3 10 5.6 1.65 1.5 1.8
 M3X12 M3 12 5.6 1.65 1.5 1.8
 M3X16 M3 16 5.6 1.65 1.5 1.8
 M3X20 M3 20 5.6 1.65 1.5 1.8
 M3X25 M3 25 5.6 1.65 1.5 1.8
 M4X8 M4 8 7.5 2.2 1.9 2.4
 M4X10 M4 10 7.5 2.2 1.9 2.4
 M4X12 M4 12 7.5 2.2 1.9 2.4
 M4X16 M4 16 7.5 2.2 1.9 2.4
 M4X20 M4 20 7.5 2.2 1.9 2.4
