Product name : Stainless Steel Hexagon Socket Set Screws
Item : MTSCRNHEST
material : Stainless Steel
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:
Standard: DIN912-DIN916 (Any kind of point, you can choose it from our following picture)
DIN912=ISO4762=GB/T70-2000=Hexagon Socket Cap Screws
DIN913=ISO4026=GB/T77-2000=Hexagon Socket Set Screws With Flat Point
DIN914=ISO4027=GB/T78-2000=Hexagon Socket Set Screws With Cone Point
DIN915=ISO4028=GB/T79-2000=Hexagon Socket Set Screws With Dog Point
DIN916=ISO4029=GB/T80-2000=Hexagon Socket Set Screws With Cup Point
Material:
SUS301,304,18/8,0Cr18Ni9,X5CrNi1810,X10Cr13,410S21,if you need to use other stainless steel, please let us know.
Heat Treatment: None for normal, If you have special hardness requirement, please let us know.
Surface Hardness:220HV is Normal, 750HV max after Quench with SUS410
Finish:None.
HeadPhilips, Slotted, Hexagon Socket, Fluted Socked
Tensile strength:700N/mm2
Thread Direction:Normal is right hand/dextrorotation, if you want left hand, please let us know.
Refer to document as below:

Stainless Steel Hexagon Socket Set Screws.pdf


  Stainless Steel Hexagon Socket Set Screws is screw fastening principle, most use between shaft and sleeve to prevent shaft and sleeve in use process to change position of the fasteners. Can be used to prevent the relative movement between the shaft and shaft sleeve, also some occasions Hexagon Socket Set Screws used to disassemble, cooperate closely, such as two parts can be rely on top of silk to separate.

Commonly used in mining, metallurgy, textile, conveying machinery, etc. Priority is suitable for the required equipment and parts of simple, has a certain adjustable mind, easy to install, has a dual structure of sealing device, can work under harsh environment. A variety of forms structure, good versatility and interchangeability.

Developed the "Hexagon Socket Set Screws adjust tight chain method", improves the work efficiency and safety coefficient. "Hexagon Socket Set Screws adjust tight chain method" solved because the chain is uneven, when started running for the impact is too strong and chain scission, reduce the complexity of the work tight chain, chain, put an end to the jump caused by loose chain , chain and chain collapse injuries, shortened the time device cut chain.

"Stainless Steel" - With the addition of 12% chromium to iron, stainless steel is formed. The chromium protects the iron against most corrosion or red colored rust; thus the term "stainless steel". The ability of stainless to form a thin layer of protection on its outside surface, called a "passive film", is its most important characteristic in preventing corrosion.

"18-8" - 300 series stainless steel having approximately (not exactly) 18% chromium and 8% nickel. The term "18-8" is used interchangeably to characterize fasteners made of 302,302HQ,303,304,384, XM7, and other variables of these grades with close chemical compositions. There is little overall difference in corrosion resistance among the 18-8 types, but slight differences in chemical composition do make certain grades more resistant than others against particular chemicals or atmospheres.

Austentic - Refers to 300 series stainless, the most popular of the stainless alloys accounting for 85%-90% of stainless fasteners sold Named for sir Robert Williams Austen, an English metallurgist, austentic stainless is a crystal structure formed by heating steel, chromium, and nickel to a high temperature where it forms the characteristics of 300 series stainless steel.

 You can refer to below chart/list of Screw head/Thread ending

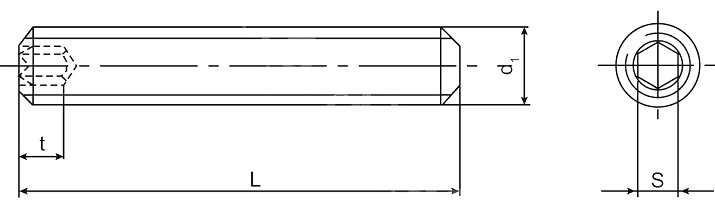

And below is the common drawing for this kind:

Below chart show some typical dimensions of them, you can refer it, or can you change it for your own design, if you want know more standard dimensions of screw , you can contact us.

Item

Standard

d1(mm)

L(mm)

t min(mm)

S(mm)

M2x3

DIN913/ISO4026/GB77

M2

3

0.8

0.9

M2x4

DIN913/ISO4026/GB77

M2

4

0.8

0.9

M3x3

DIN913/ISO4026/GB77

M3

3

1.2

1.5

M3x4

DIN913/ISO4026/GB77

M3

4

1.2

1.5

M3x5

DIN913/ISO4026/GB77

M3

5

1.2

1.5

M3x6

DIN913/ISO4026/GB77

M3

6

1.2

1.5

M3x8

DIN913/ISO4026/GB77

M3

8

1.2

1.5

M3x10

DIN913/ISO4026/GB77

M3

10

1.2

1.5

M3x12

DIN913/ISO4026/GB77

M3

12

1.2

1.5

M3x16

DIN913/ISO4026/GB77

M3

16

1.2

1.5

M3x20

DIN913/ISO4026/GB77

M3

20

1.2

1.5

M3x30

DIN913/ISO4026/GB77

M3

30

1.2

1.5

M4x3

DIN913/ISO4026/GB77

M4

3

1.5

2

M4x4

DIN913/ISO4026/GB77

M4

4

1.5

2

M4x5

DIN913/ISO4026/GB77

M4

5

1.5

2

M4x6

DIN913/ISO4026/GB77

M4

6

1.5

2

M4x8

DIN913/ISO4026/GB77

M4

8

1.5

2

M4x10

DIN913/ISO4026/GB77

M4

10

1.5

2
