Product name : Stainless Steel Pan Head Machine Screw
Item : MTSCRPANST
material : Stainless Steel
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:
Standard: ISO7045 , DIN7985, GB/T819.1-2000, GB/T818-2000(Philips Driver), DIN85 , ISO1580, GB/T67-2000 (Slotted Driver)
Material: SUS301,304,18/8,0Cr18Ni9,X5CrNi1810,X10Cr13,410S21,if you need to use other stainless steel, please let us know.
Heat Treatment: None for normal, If you have special hardness requirement, please let us know.
Surface Hardness:220HV is Normal, 750HV max after Quench with SUS410
Finish:None.
Head:Pan Head
Tensile strength:700N/mm2
Thread Direction:Normal is right hand/dextrorotation, if you want left hand, please let us know.
Refer to document as below:

Stainless Steel Pan Head Machine Screw.pdf


 Stainless Steel Pan Head Machine Screw is a machine screw, also sometimes referred to as a machine bolt, is a screw that is typically designed to be fastened to an existing, tapped hole on a metal surface, usually in conjunction with a corresponding nut. These types of screws are not as large as the average screw, usually ranging in sizes up to three quarters of an inch (19.05 mm) but they can still be larger. Variations between machine screws mainly exist in overall size, shape of the head, slot type, length, material, and characteristics of the thread.

"Stainless Steel" - With the addition of 12% chromium to iron, stainless steel is formed. The chromium protects the iron against most corrosion or red colored rust; thus the term "stainless steel". The ability of stainless to form a thin layer of protection on its outside surface, called a "passive film", is its most important characteristic in preventing corrosion.

"18-8" - 300 series stainless steel having approximately (not exactly) 18% chromium and 8% nickel. The term "18-8" is used interchangeably to characterize fasteners made of 302,302HQ,303,304,384, XM7, and other variables of these grades with close chemical compositions. There is little overall difference in corrosion resistance among the 18-8 types, but slight differences in chemical composition do make certain grades more resistant than others against particular chemicals or atmospheres.

Austentic - Refers to 300 series stainless, the most popular of the stainless alloys accounting for 85%-90% of stainless fasteners sold Named for sir Robert Williams Austen, an English metallurgist, austentic stainless is a crystal structure formed by heating steel, chromium, and nickel to a high temperature where it forms the characteristics of 300 series stainless steel.

  Pan head screws are a type of fastener that binds materials together or tightens the connection of two or more materials. The top of a pan head screw is wider than any other screw head. This characteristic makes the screw resemble a frying pan. Pan head screws feature a helical ridge known as a thread that is wrapped around a cylinder. This allows the screw to easily descend into the material it is fastening. Other types of screw heads include button, round, truss, flat and oval. These types are all more abbreviated and require more precise screwdriver work. To fasten a pan head screw, rest a screwdriver's end in the groove on top of the head and turn it clockwise. This will fasten the materials that are being joined or tightened

 You can refer to below chart/list of Screw head/Thread ending

Thread ending:

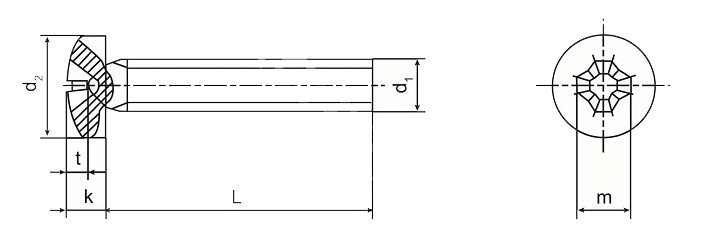

And below is the common drawing for this kind:

Below chart show some typical dimensions of them, you can refer it, or can you change it for your own design, if you want know more standard dimensions of screw , you can contact us.

Item

d1(mm)

L(mm)

d2 max.(mm)

k max.(mm)

m~(mm)

t min(mm)

t max(mm)

M2.5X10

M2.5

10

5

2.1

2.7

1.15

1.55

M2.5X12

M2.5

12

5

2.1

2.7

1.15

1.55

M2.5X14

M2.5

14

5

2.1

2.7

1.15

1.55

M2.5X16

M2.5

16

5

2.1

2.7

1.15

1.55

M2.5X18

M2.5

18

5

2.1

2.7

1.15

1.55

M2.5X20

M2.5

20

5

2.1

2.7

1.15

1.55

M2.5X22

M2.5

22

5

2.1

2.7

1.15

1.55

M2.5X25

M2.5

25

5

2.1

2.7

1.15

1.55

M2.5X4

M2.5

4

5

2.1

2.7

1.15

1.55

M2.5X5

M2.5

5

5

2.1

2.7

1.15

1.55

M2.5X6

M2.5

6

5

2.1

2.7

1.15

1.55

M2.5X8

M2.5

8

5

2.1

2.7

1.15

1.55

M2X10

M2

10

4

1.6

1.9

0.9

1.2

M2X12

M2

12

4

1.6

1.9

0.9

1.2

M2X14

M2

14

4

1.6

1.9

0.9

1.2

M2X16

M2

16

4

1.6

1.9

0.9

1.2

M2X18

M2

18

4

1.6

1.9

0.9

1.2
